Horizontal Pumps with mechanical seal


Mobirise

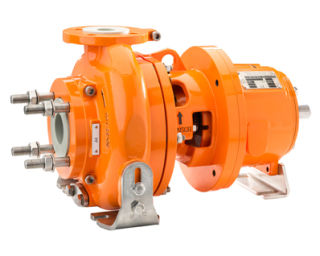

Standardized chemical pump CS
Armoured horizontal pump with mechanical seal


The armoured pumps of the NPC series are designed to meet chemical process industry standards and are ideally suited to pumping chemicals and solvents manufactured in back pull-out design.

The MUNSCH REA mechanical seal, specifically developed for non-metallic pumps, ensures maximum operating reliability and a long service life while being easy to assemble and repair


Materials:
The chemical pumps are available in PP, PVDF as well as in corrosion-resistant PFA for universal fluid compatibility.


Performance data


Pump capacity: up to 200 m³/h
Total differential head: up to 90 m
Operating temperature [t]: -20°C bis +180 °C
Operating pressure [p]: up to 16 bar
Solids content: up to 5 Vol.-%
Particle size: up to 5 mm
Diameter of discharge nozzle: DN 25 up to DN 65
Drive rating [P]: up to 30 kW


Applications
The CS-series pumps are the solution of choice for the safe pumping of fluids posing an environmental or health hazard such as acids, alkalis, solvents and chemically contaminated fluids in the presence or absence of solids.

Typical applications include the chemical and pharmaceutical industries, electrolysis plants, electroplating plants, the metallurgical and metal finishing industries. .
more Information / Application


Construction
Standardized chemical pump, process pump design with dimensions to EN 22858/ISO 2858;
Complemented by Size 40-25-125 and 40-25-160


Mechanical seals
The main construction material of the mechanical seal is silicon carbide. No other material offers better corrosion and wear resistance.


MUNSCH REA FS single mechanical seal:

Gleit- und Gegenring sind aus Siliziumkarbid; die Feder ist mit Fluorkunststoff ummantelt.

MUNSCH REA FS/D double mechanical seal:

Product-side stationary and rotating seal rings fabricated from silicon carbide, atmosphere-side stationary seal ring made of carbon; stainless steel spring.


Shaft sleeve:
Silicon carbide

Mobirise

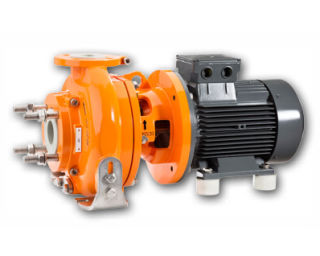

Standardized chemical pump CS-B
Armoured, close-coupled horizontal pump with mechanical seal

The armoured pumps of the CS-B series are designed to meet chemical process industry standards and are ideally suited to pumping chemicals and solvents manufactured in back pull-out design.

The MUNSCH REA mechanical seal, specifically developed for non-metallic pumps, ensures maximum operating reliability and a long service life while being easy to assemble and repair

Materials:
The chemical pumps are available in PP, PVDF as well as in corrosion-resistant PFA for universal fluid compatibility.


Performance data

Pump capacity: up to 90 m³/h
Total differential head: up to 60 m
Operating temperature [t]: -20°C bis +180 °C
Operating pressure [p]: up to 16 bar
Solids content: up to 5 Vol.-%
Particle size: up to 5 mm
Diameter of discharge nozzle: DN 25 up to DN 65
Drive rating [P]: up to 18,5 kW


Applications
The CS-series pumps are the solution of choice for the safe pumping of fluids posing an environmental or health hazard such as acids, alkalis, solvents and chemically contaminated fluids in the presence or absence of solids.

Typical applications include the chemical and pharmaceutical industries, electrolysis plants, electroplating plants, the metallurgical and metal finishing industries. .
more Information / Application


Construction
Close-coupled chemical pump design with dimensions to EN 22858/ISO 2858;
Complemented by Size 40-25-125 and 40-25-160


Mechanical seals
The main construction material of the mechanical seal is silicon carbide. No other material offers better corrosion and wear resistance.


MUNSCH REA FS single mechanical seal:

Gleit- und Gegenring sind aus Siliziumkarbid; die Feder ist mit Fluorkunststoff ummantelt.

MUNSCH REA FS/D double mechanical seal:

Product-side stationary and rotating seal rings fabricated from silicon carbide, atmosphere-side stationary seal ring made of carbon; stainless steel spring.

Shaft sleeve:
Silicon carbide

Mobirise

Standardized chemical pump NP
Horizontal pump with mechanical seal


Applications
The NP pump series is excellently suited to pumping tasks in the chemical industry, electroplating plants, metallurgical industries, steel and stainless steel pickling lines, evaporation and regeneration units, wet flue gas cleaning systems downstream of waste incinerators as well as in exhaust air scrubbing and industrial waste water treatment.

more Information / Application


Materials
The chemical pumps are available in PP, PE-UHMW as well as PVDF.


Performance data
Pump capacity:
up to 1200 m³/h
Total differential head:
up to 100 m
Operating temperature [t]:
-20°C up to +110 °C
Operating pressure [p]:
up to 10 bar
Diameter of discharge nozzle:
DN 25 up to DN 250
Drive rating [P]:
up to 200 kW


Construction:
Horizontal centrifugal pump, process pump design;

Casing and fitting dimensions to EN 22858/ISO 2858;

Complemented by size 40-25-125, 40-25-160, 250-200-400 and 300-250-400.


Mechanical seals
The MUNSCH REA mechanical seal, specifically developed for non-metallic pumps, ensures maximum operating reliability and a long service life while being easy to assemble and repair.

The main construction material of the mechanical seal is silicon carbide. No other material offers better corrosion and wear resistance.


MUNSCH REA F single mechanical seal:

Stationary and rotating seal rings fabricated from silicon carbide; the spring is encapsulated in fluoroplastics.


MUNSCH REA F/D double mechanical seal:
Product-side stationary and rotating seal rings fabricated from silicon carbide, atmosphere-side stationary seal ring made of carbon, stainless steel spring.


Shaft sleeve:
Fluoroplastics-coated stainless steel.

develop your own website

Mobirise

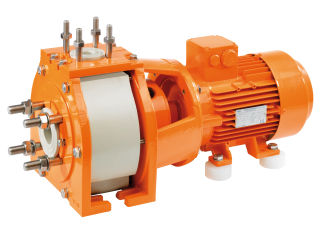

Close-coupled chemical pump NP-B
Horizontal pump with mechanical seal


The MUNSCH REA mechanical seal, specifically developed for non-metallic pumps, ensures maximum operating reliability and a long service life while being easy to assemble and repair.


Materials
The chemical pumps are available in PP, PE-UHMW as well as PVDF.


Performance data
Pump capacity:
up to 160 m³/h
Total differential head: up to 70 m
Operating temperature [t]:
-20°C up to +110 °C
Operating pressure [p]:
up to 10 bar
Diameter of discharge nozzle:
DN 25 up to DN 65
Motor sizes up to ICE motor size:
up to 132


Applications
The NP-B pump series is excellently suited to pumping tasks in the chemical industry, electroplating plants, metallurgical industries, steel and stainless steel pickling lines, evaporation and regeneration units, wet flue gas cleaning systems downstream of waste incinerators as well as in exhaust air scrubbing and industrial waste water treatment.

more Information / Application

Construction

Horizontal centrifugal pump;

Casing dimensions to EN 22858/ISO 2858;

Complemented by size 40-25-125 and 40-25-160.


Mechanical seals
The main construction material of the mechanical seal is silicon carbide. No other material offers better corrosion and wear resistance.

MUNSCH REA F single mechanical seal:

Stationary and rotating seal rings fabricated from silicon carbide; the spring is encapsulated in fluoroplastics.


MUNSCH REA F/D double mechanical seal:

Product-side stationary and rotating seal rings fabricated from silicon carbide, atmosphere-side stationary seal ring made of carbon; stainless steel spring.


Shaft sleeve:
Fluoroplastics-coated stainless steel.

Mobirise

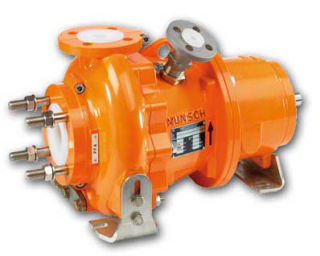

Standardized chemical pump NPC
Armoured horizontal pump with mechanical seal


The armoured pumps of the NPC series are designed to meet chemical process industry standards and are ideally suited to pumping chemicals and solvents.


The MUNSCH REA mechanical seal, specifically developed for non-metallic pumps, ensures maximum operating reliability and a long service life while being easy to assemble and repair.


Materials:
The chemical pumps are available in PP, PVDF as well as in corrosion-resistant PFA for universal fluid compatibility.


Performance data


Pump capacity:
up to 200 m³/h
Total differential head:
up to 90 m
Operating temperature [t]:
-20°C up to +150 °C
Operating pressure [p]:
up to 16 bar
Diameter of discharge nozzle:
DN 25 up to DN 65
Drive rating [P]:
up to 30 kW


Applications
The NPC-series pumps are the solution of choice for the safe pumping of fluids posing an environmental or health hazard such as acids, alkalis, solvents and chemically contaminated fluids in the presence or absence of solids.


Typical applications include the chemical and pharmaceutical industries, electrolysis plants, electroplating plants, the metallurgical and metal finishing industries. .

more Information / Application


Construction
Standardized chemical pump, process pump design

with dimensions to EN 22858/ISO 2858;

Complemented by Size 40-25-125 and 40-25-160


Mechanical seals
The main construction material of the mechanical seal is silicon carbide. No other material offers better corrosion and wear resistance.


MUNSCH REA F single mechanical seal:
Stationary and rotating seal rings fabricated from silicon carbide; the spring is encapsulated in fluoroplastics.


MUNSCH REA F/D double mechanical seal:
Product-side stationary and rotating seal rings fabricated from silicon carbide, atmosphere-side stationary seal ring made of carbon; stainless steel spring.


Shaft sleeve:
Fluoroplastics-coated stainless steel.

Mobirise

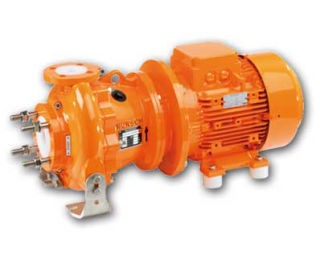

Close-coupled chemical pump NPC-B
Armoured horizontal pump with mechanical seal

The armoured close-coupled pumps of the NPC-B series are designed to meet chemical process industry standards and are ideally suited to pumping chemicals and solvents.


The MUNSCH REA mechanical seal, specifically developed for non-metallic pumps, ensures maximum operating reliability and a long service life while being easy to assembly and repair.


Materials
The chemical pumps are available in PP, PVDF as well as in corrosion-resistant PFA for universal fluid compatibility.


Performance data
Pump capacity:
up to 150 m³/h
Total differential head:
up to 80 m
Operating temperature [t]:
-20°C up to +150 °C
Operating pressure [p]:
up to 16 bar
Diameter of discharge nozzle:
DN 25 up to DN 65
Drive rating [P]:
up to 18,5 kW


Applications
The NPC-B series chemical pumps are the solution of choice for pumping fluids posing an environmental or health hazard such as acids and alkalis or solvents as well as chemically contaminated fluids in the presence or in the absence of solids.


Typical applications include the chemical and pharmaceutical industries, electrolysis plants, electroplating plants, the metallurgical and metal finishing industries.

more Information / Application


Construction
Close-coupled standardized chemical pump
with dimensions to EN 22858/ISO 2858;
Complemented by Size 40-25-125, 40-25-160.


Mechanical seals
The main construction material of the mechanical seal is silicon carbide. No other material offers better corrosion and wear resistance.


MUNSCH REA F single mechanical seal:
Stationary and rotating seal rings fabricated from silicon carbide; the spring is encapsulated in fluoroplastics.


MUNSCH REA F/D double mechanical seal:
Product-side stationary and rotating seal rings fabricated from silicon carbide, atmosphere-side stationary seal ring made of carbon; stainless steel spring.


Shaft sleeve:
Fluoroplastics-coated stainless steel.

Mobirise

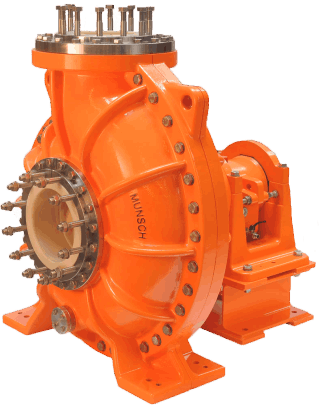

Chemical centrifugal pump NPC Mammut
NPC 300-250-400 and NPC 500-400-700 armoured horzontal pump with mechanical seal

The armoured pump is designed to meet chemical process industry standards and can handle high delivery rates and pump heads.


The MUNSCH REA mechanical seal, specifically developed for non-metallic pumps, ensures maximum operating reliability and a long service life while being easy to assemble and repair.


Materials


Pump casing / Impeller/ Casing cover:

PP / PE-UHMW (upon request) / PVDF

Casing armour: EN-JS 1025

Bearing bracket: EN-JS 1030

Stationary and rotating seal rings: SSiC

Secondary seals: FPM / EPDM / FFPM



Performance data


Pump capacity:
up to 3000 m³/h
Total differential head:
up to 65 m
Operating Temperature:
0°C up to +100 °C
Solids concentration:
up to 10% by vol.
Particle size:
up to 15 mm
Motor rating:
up to 450 kW


Applications
The type NPC MUNSCH Mammut pump is specifically designed to handle acids, alkalis or chemically contaminated fluids with or without solids loads. Typical applications include the chemical and metallurgical industries, the metal finishing industry, steel and stainless steel pickling lines, evaporation and regeneration units, flue gas cleaning systems downstream of waste incinerators as well as exhaust gas scrubbing and scrubber effluent treatment.

more Information / Application


Construction
Horizontal centrifugal pump with split volute casing and single-entry, single-stage radial impeller. Meets the technical requirement for Class II centrifugal pumps as per EN ISO 5199.


Mechanical seal
Single mechanical seal - direction of rotation-independent, metal-free MUNSCH REA-IV mechanical seal, insensitive to solids.


Double mechanical seal - Shaft sealing solution for fluids posing an environmental hazard.


Shaft sleeve:
Fluoroplastics-coated stainless steel.
